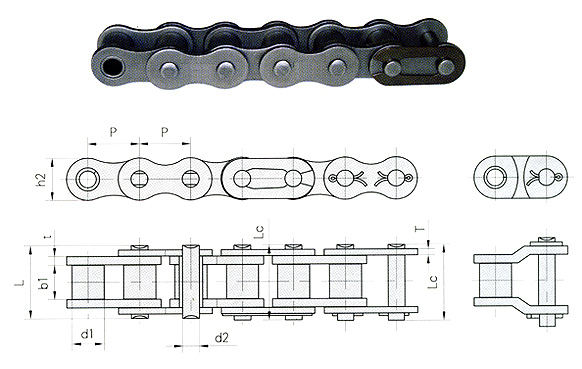

HOME > AUTO TRANSMISSION CHAIN > SHORT PITCH PRECISION ROLLER CHAINS (B Series)
DIN/ISO Chain No.
Pich
Roller diamenter
Width between inner plates
Pin diamenter
Pin length
Inner plate depth
Plate thick-ness
Utimate tensile strength
Average tensile strength
Weight per meter
p
d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
t/t
max
Q
min
Qo
q
mm
mm
mm
mm
mm
mm
mm
mm
kN
KN
kg/m
04B-1
6.000
4.00
2.80
1.85
6.80
7.8
5.00
0.60
3.0
3.2
0.11
05B-1
8.000
5.00
3.00
2.31
8.208.9
7.10
0.80
5.0
5.9
0.20
06B-1
9.525
6.35
5.72
3.28
13.15
14.0
8.20
1.30
9.0
10.4
0.41
08B-1
12.700
8.51
7.75
4.45
16.70
18.2
11.80
1.60
18.0
19.4
0.69
10B-1
15.875
10.16
9.65
5.80
19.50
20.9
14.70
1.70
22.4
27.5
0.93
12B-1
19.050
12.07
11.68
5.72
22.50
24.2
16.00
1.85
29.0
32.2
1.15
16B-1
25.400
15.88
17.02
8.28
36.10
37.4
21.00
4.15/3.1
60.0
72.8
2.71
20B-1
31.750
19.05
19.56
10.19
41.30
45.0
26.40
4.5/3.5
95.0
106.7
3.70
24B-1
38.100
25.40
25.40
14.63
53.40
57.8
33.20
6.0/4.8
160
178.0
7.10
28B-1
44.450
27.94
30.99
15.90
65.10
69.5
36.70
7.5/6.0
200.0
222.0
8.50
32B-1
50.800
29.21
30.99
17.81
66.00
71.0
42.00
7.0/6.0
250
277.5
10.25
40B-1
63.500
39.37
38.10
22.89
82.20
89.2
52.96
8.5/80
355.0
394.0
16.35
48B-1
76.200
48.26
45.72
29.24
99.10
107.0
63.80
12.0/10.0
560.0
621.6
25.00
