HOME > MOTORCRYCLE CHAIN > Bushing chain

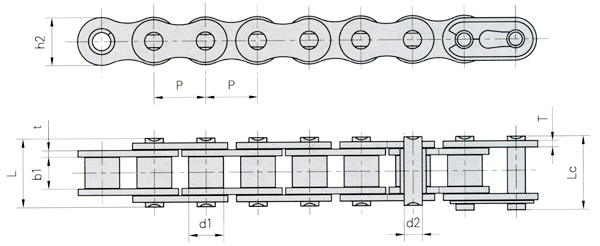

Chain No.
Pich
Roller diamenter
Width between inner plates
Pin diamenter
Pin length
Inner plate depth
Plate thickness
Utimate tensile strength
Average tensile strength
Weight per meter
p
d1
max
b1
min
d2
max
L
max
Lc
max
h2
max
t/t
max
Q
min
Qo
q
mm
mm
mm
mm
mm
mm
mm
mm
kN
KN
kg/m
25
6.35
3.3
3.18
2.31
7.9
8.4
6
0.8
3.5
4.6
0.15
25H
6.350
3.30
3.18
2.31
8.90
9.5
6.00
1.04
4.80
5.5
0.17
270H
8.5
5
4.75
3.28
13.15
14.6
8.5
1.8/1.4
9.8
11
0.33
415H
12.7
7.77
4.76
3.96
13.1
14.5
11.8
1.5
16
19.2
0.5
420
12.700
7.77
6.25
3.96
14.70
16.1
12.00
1.50
16.00
18.1
0.55
420H
12.7
7.77
6.25
3.96
16.8
18
11.8
2.03
17
20.4
0.63
428
12.700
8.51
7.75
4.45
16.7
18.2
11.80
1.60
18.0
20.1
0.70
428H
12.700
8.51
7.85
4.45
18.80
19.9
11.80
2.03
20.6
23.4
0.79
428HB
12.700
8.51
7.94
4.45
17.90
19.3
12.00
1.85
18.62
21.0
0.76
520
15.875
10.16
6.25
5.08
17.50
19.0
15.09
2.03
26.50
29.7
0.89
520H
15.875
10.16
6.25
5.08
19.30
20.8
15.09
2.42
26.50
31.5
1.10
530
15.875
10.16
9.40
5.08
20.7
22.2
15.09
2.03
26.50
29.7
530H
15.875
10.16
9.5
5.08
22
23.5
15
2.42
23.5
39.4
1.24
